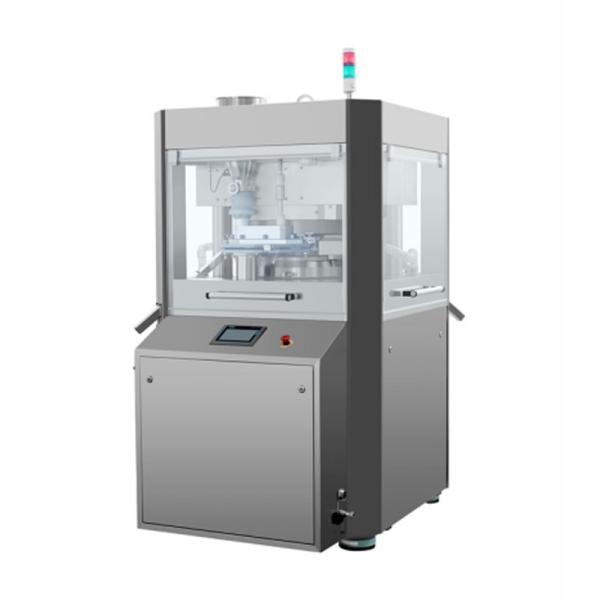

Double Side High Speed Rotary Tablet Press for Chemistry

Name: Double Side High Speed Rotary Tablet Press for Chemistry
Brand: SED Pharma
Price: 1 USD

Brand Name : SED Pharma

Model Number : SED-570-41GY-F

Certification : CE

Place of Origin : China

Payment Terms : T/T,L/C, MoneyGram,Cash

MOQ : 1 Set

Price : Negotiable

Supply Ability : 30 Sets per month

Delivery Time : 50-60 Days after receiving the deposit

Packaging Details : Wooden Case

Name : Double Side High Speed Rotary Tablet Press for Chemistry

Model No. : SED-570-41GY-F

Punch station : 35

Max Pressing Pressure(KN) : 80

Max Capacity(pcs/h) : 60000-150000

Covered Area(mm) : 1300x1200

material : stainless steel

key word : Tablet Press Machine

Contact Now

Double Side High Speed Rotary Tablet Press for Chemistry

Product Description of Tablet Punching Machine

This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet.

This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.

Product Parameters of Tablet Punching Machine

Model		SED-570-41GY-F	SED-570-51GY-F	SED-570-61GY-F	SED-570-65GY-F
Number of Stations		41	51	61	65
Tooling Standard		D	B	BB	BBS
Max Main Pressure (KN)		100
Max Pre-pressure (KN)		40
Max Tablet Diameter (mm)	round tablet	25	18	13	11
	irregular tablet	25	19	16	13
Max Filling Depth (mm)		20	18	15	15
Max Tablet Thickness (mm)		10	8	6	6
Max Turret Speed (r/min)		60
Max Production Capacity (pcs/h)		295200	367200	439200	468000
Motor Power (kw)		11
Overall Size (mm)		1420×1200×1850
Machine Weight (kg)		3500

Feature of Tablet Punching Machine

High speed with large quantity punches, double press rollers, suitable for mass production.
Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
Automatic adjust each operation parameter (main pressure, pre-pressure and filling depth) easily without handwheel.
Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
Tooling track adopt double-side lifting structure, the punches are balanced stress and wear resistance.
High performance electrical control system, ensure each program processing precisely.
Automatic oil&grease central lubrication system, ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.
Special oil proof, dust proof and noise proof design.

Application of Tablet Punching Machine

Double Side High Speed Rotary Tablet Press for Chemistry
