Pin Cyclone Dedusting & Grinding Pulverizer Machine

Brand Name : SED Pharma

Model Number : SED-150CFS-H

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T,L/C, MoneyGram,Cash

Supply Ability : 30 Sets per month

Delivery Time : 50-60 Days after receiving the deposit

Packaging Details : Wooden Case

Name : Pin Cyclone Dedusting & Grinding Pulverizer Machine

Production capacity (kg/h) : 20-150

Weight (KG) : 350 KG

Outline dimension : LxWxH (mm)1000*800*1600

Power(W) : 2.2KW

Voltage : 380V 50hz

material : stainless steel

key word : Grinding Pulverizer Machine

Contact Now

Product Overview of Grinding Pulverizer Machine

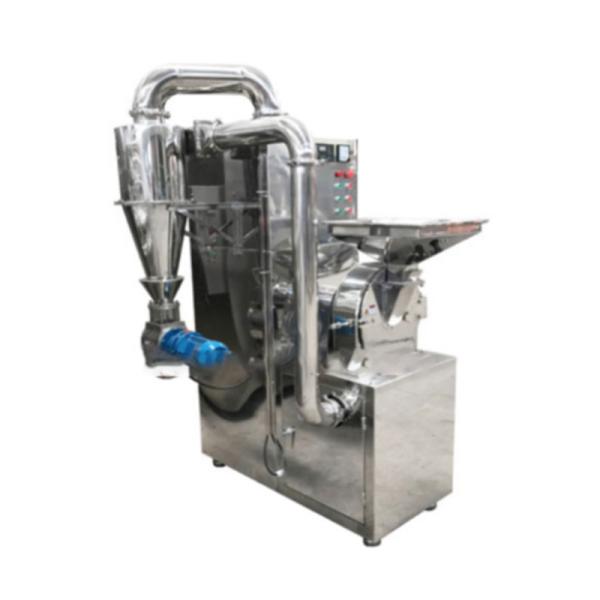

Pin cyclone dedusting & grinding machine is a new generation of grinding machine, which is carefully designed and developed by our company based on our crushing experience and actual conditions. This machine is mainly applied to crush material with low hardness in chemicals, dyes, additives, feed, food, medicine and non-metallic mineral, fineness adjusted between 20-120 mesh. It has advantages such as high production capacity, fine grain, low noise, low energy consumption, easy maintenance and easy installation, especially for crushing oily, viscous, heat-sensitive and fibrous material with low hardness (example: ginger, chili, pepper, naked oats, soybean, star anise and cinnamon).

This machine adopts the tooth disc high-speed rotating knife, the fixed knife impact and shear grinding to crush. The crushing effect is good, the heat of crushing chamber and finished product outflow together from sieve by strong airflow which produced when crushing, crushing fineness can be decided by different sieves.

The unit make the materials crushed by the impact & grind function of the relative motion between active and fixed fluted discs, and impact between the materials. Smashed materials enter into the capture bag by rotating centrifugal force function, the dust filtered and recycled by dust collector through a bag filter box. This machine designed according to GMP standard and wholly made of stainless steel materials, has no flying dust during production. It can improve the utilization rate of material and reduce cost of enterprise, and has reached the international advanced level at present.

Product Parameters of Grinding Pulverizer Machine
Model SED-150CFS-H
Capacity(kg/h) 20-150
Main Speed (r/min) 4500
Feed Size (mm) 6
Discharge Size(mesh) 20-150
Crush Power (kw) 4
Fan Power(kw) 2.2
Discharge motor(kw) 0.75
Weight(kg) 350
Overall Dimensions(mm) 1000*800*1600

Feature of Grinding Pulverizer Machine

1.Powerful grinding ability, low energy consumption, relatively fine grain

2.Crush in a large space, high-strength wind pressure is generated when the turbine operates, not only to increase production capacity and reduce phenomenon of over-crushing, but also to effectively avoid the deposition and clogging of material in the screen during the production.

3.Crushing ability of fibrous materials is stronger than common equipment because of the strengthening of the cut.

4.Easy screen installation, reliable positioning, adopting plug-in type; Service life is relatively longer than the ring-screen.

5.Interal-mounted motor lows the center of gravity and noise.
