Pharmaceutical Ampoule Inspection Machine 380V 50Hz 8Kw
Product Overview of Ampoule Inspection Machine
Fully automatic lamp inspector absorbs advanced European design and production technology, adopts full servo computer control and high precision machine vision system to complete defect detection of freeze-dried blocks; integrity detection of rubber plugs and aluminium caps; glass bottle detection.
Equipment system includes: bottle entry, head detection, foreign body detection, container detection, image analysis, automatic warehousing after inspection, bottle exit, isolation and protection system. The whole equipment meets the requirements of GMP in China. Knapp-Kushner test procedure approved by European Pharmacopoeia was used.
Product Parameters of Ampoule Inspection Machine
| applicable specifications for detecting | Ampoule |
| number of bottle s holders | 60 |
| number of cameras | 5 |
| running speed | 500-4000 |
| Power supply: | 380V50Hz8Kw |
| Overall Size: | |
| noise | -75Db |
| air pressure supply | 0.5-0.7mpa |
| weight | 2500 |
Feature of Ampoule Inspection Machine
The design and manufacture conform to GMP and GAMP.
Friendly operation interface, convenient maintenance, easy to clean.
Die replacement is simple and can be quickly replaced without tools.
DD motor direct drive technology is adopted to track smoothly without gap error.
The clamping position of the product is designed by the clamp type, so that the detection of the product has no dead angle and blind spot, and the clamping force, speed, rotating speed, rotating circle number and rotating time of the clamp can be accurately adjusted.
Non-conforming products can be classified and eliminated, which can be used for QA personnel to conduct data analysis and statistics on production conditions.
Standard configuration + option configuration, flexible customization of testing items.
Detection data and detection process are recorded synchronously, which conforms to GAMP specifications.

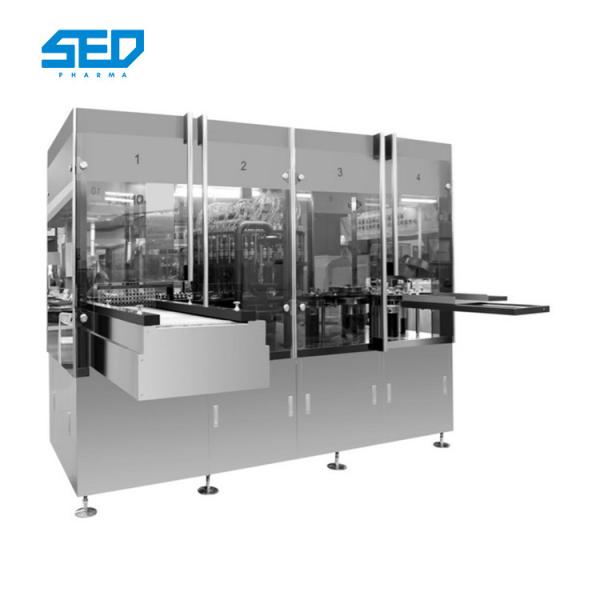

Show of Ampoule Inspection Machine
Application of Ampoule Inspection Machine
Mainly used for automatic detection of visible impurities (such as glass or metal shavings, fibers, hair, white powder or flakes) and liquid level in ampoule injections. Also available for visible impurities in vials and oral solution bottles.
