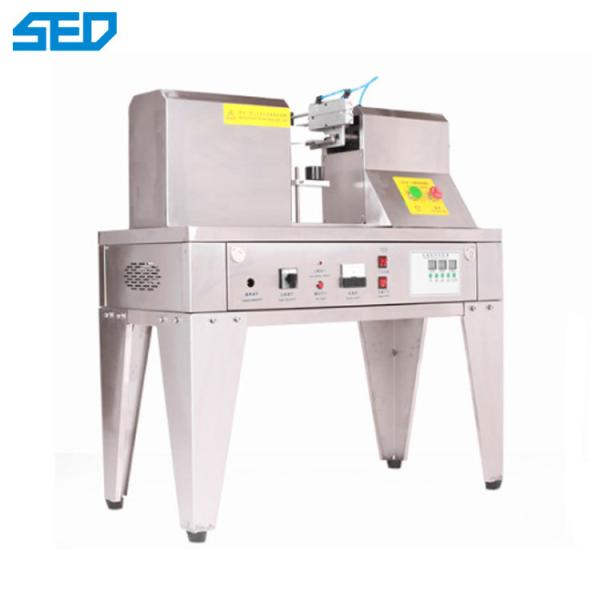

Semi-Automatic Ultrasonic Pipe Filling And Sealing Machine

Name: SemiAutomatic Ultrasonic Pipe Filling And Sealing Machine
Brand: SED Pharma
Price: 1 USD

Semi-Automatic Ultrasonic Pipe Filling And Sealing Machine Manufactures

Brand Name : SED Pharma

Certification : CE

Place of Origin : China

Payment Terms : T/T,L/C, MoneyGram,Cash

MOQ : 1 Set

Price : Negotiable

Supply Ability : 30 Sets per month

Delivery Time : 50-60 Days after receiving the deposit

Packaging Details : Wooden Case

Name : Semi-Automatic Ultrasonic Pipe Filling And Sealing Machine

Production efficiency : 1000-5500 bottles /H

Filling quantity : 150-750ml

Number of filling machine heads : 12 heads, 18 heads and 24 heads

Motor power : 1.5kw

Voltage : 380 v

Overall size : 1400X1300X2000MM

Weight : 100KG

material : stainless steel

key word : Ultrasonic Pipe Filling And Sealing Machine

Contact Now

Product Overview of Filling And Sealing Machine

Ultrasonic plastic tube sealing machine is suitable for toothpaste, cosmetics, medicines, food industrial supplied. With

horizontal aluminum alloy structure, stainless steel package, environment friendly and sanitation. With independent platform, vertical /horizontal adjustable worktable, worktable, easy operation stable performance, high efficiency.

Product Parameters of Filling And Sealing Machine

Environmental temperature	0°C +35°C
Working Height	0-300mm(customizable)
Maximum output power	1250W
Tube diameter	F5~F50 mm(customizable)
Environment humidity	relative humidity below 85%
Air pressure	0.2-0.6MPa
Tube height	50~180mm(customizable)
Weight	100KG

Feature of Filling And Sealing Machine

1. Two dimensional adjustment of work piece platform, it is easy to operate.

2. It adopts Taiwan cassette mechanism and circuit Lines, using famous brand of Ultrasonic parts.

3. Overload protection, phase separation protection, power-fail protection.

4. Large Ultrasonic Out put power to ensure the sealing quality of various specifications of tube.

5. It can seal soft tube also can printing date and cutting.

Application of Filling And Sealing Machine

This ultrasonic plastic tube sealing machine is suitable for toothpaste, cosmetics, medicine, food industry supply, etc. Adopt horizontal aluminum alloy structure, stainless steel packaging, environmental protection and hygiene.
