FWJ-L30 Automatic Plastic And Flexible Pipe Filling Sealing Machine 30 Tubes Per Minunte
Product Overview of Pipe Filling Sealing Machine
Full automatic composite tube filling and sealing machine, is mainly applied to filling and sealing of the container with aluminum tube as packing materials. Paste and liquid is filled by enclosed and semi-enclosed way, no leakage sealing. Tube filling weight and capacity is consistent.
Filling and sealing are finished completely atone time. This model is widely used in areas of pharmaceutical, cosmetic, food, chemical, etc.
This machine breaks through the tradition, it does not need to use plastic or welding, can make the tube end closed, or need to leave a small hole for its needs.
- Suitable for all kinds of round tube such as iron tube, aluminum tube, copper tube, titanium tube, etc
The two units are designed, which take turns to speed up the processing time, save manpower, speed and convenience, and have no noise.
- Automatic operation, safe and simple, non - technical personnel can operate freely.
Product Parameters of Pipe Filling Sealing Machine
| No | Item | Description | Remark |
| 1 | Voltage | 220V/50Hz | Can be customized |
| 2 | Applied material of tube | Aluminum tube | Can be customized |
| 3 | Filling range | A:5-30ml B:30-150ml | Can be customized |
| 4 | Filling speed | 40-60 pcs/min | |
| 5 | Tube pucking model | 16 pieces/set, customized according to client’s tube | |
| 6 | Tube diameter | φ19-φ50mm | Can be customized |
| 7 | Hopper | 50L | |
| 8 | Air compressor | Pressure: 0.1-0.3Mpa, Air flow: 0.2m³/min | |
| 9 | Motor | 1.5kw | |
| 10 | Filling accuracy | ±1% | |
| 11 | Dimension | 1750×950×1850mm | |
| 12 | Overall weight | 250kg | |
Feature of Pipe Filling Sealing Machine
1. This model adopts mechanical structure, smooth and fast operation, high efficiency, low noise, simple structure, convenient operation and maintenance with low fault.
2. Parts touching material adopt high quality stainless steel (commonly adopts SUS304, SUS316L for medical).
3. Particular valve structure realizes double applied to paste and liquid filling in this machine.
4. It also has the advantages of firm sealing, high speed, automatic and precise position, PLC control system, and various sealing machine makes the sealing end in different shaped. Assembled with dust-proof of organic glass.
Control system adopts advanced intelligent HMI system, all parameter can be dynamic displayed, adjusted and set on large touch-screen, including motor speed, production speed, etc.

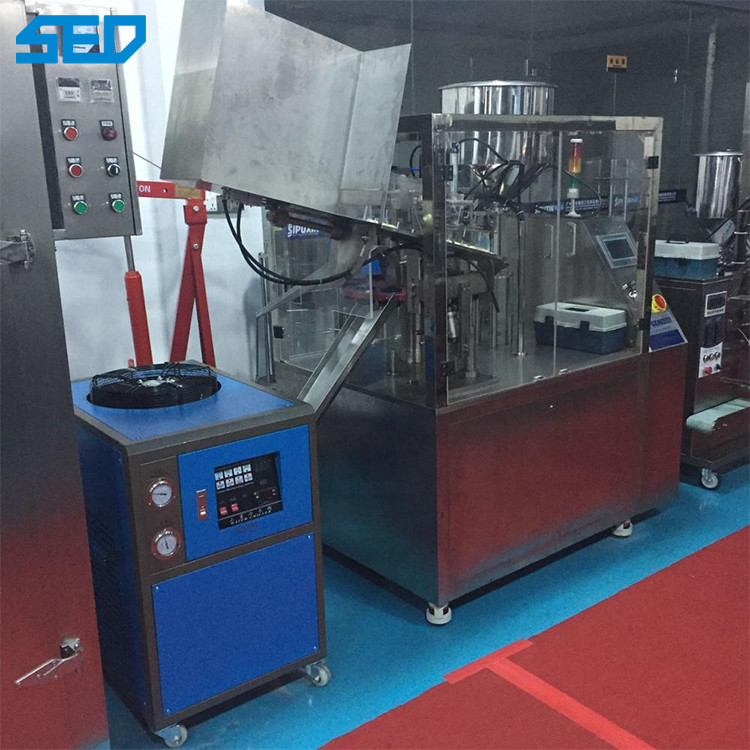

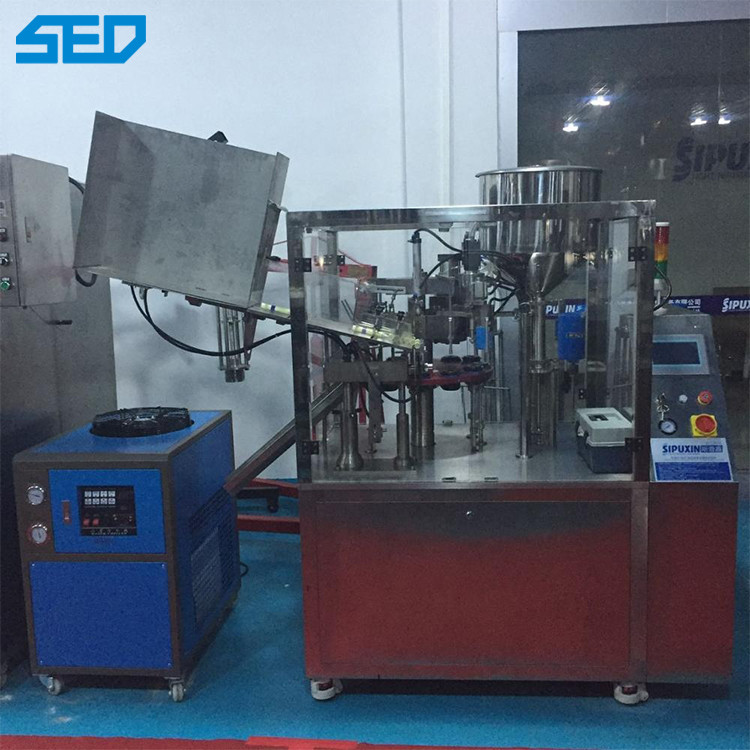

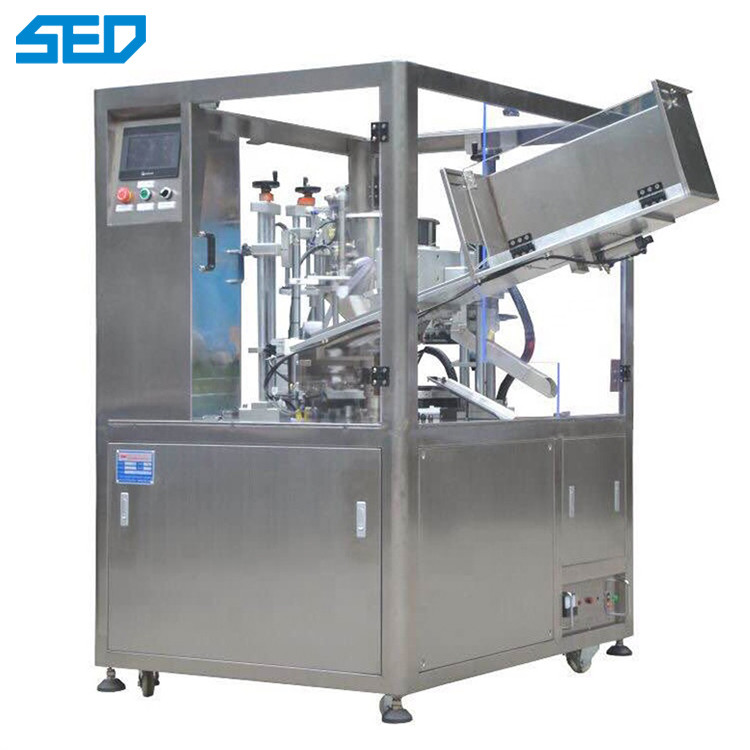

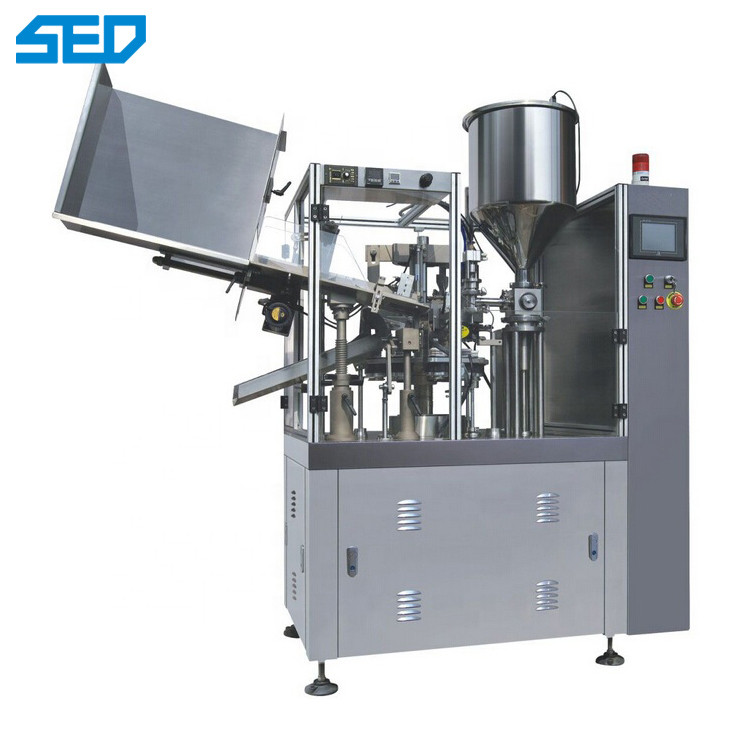

Show of Pipe Filling Sealing Machine
Application of Pipe Filling Sealing Machine
The automatic tube paste filling and sealing machine is widely used in medicine, cosmetics and other industries. Suitable for all kinds of hose potting paste, lotion, oil, etc.
