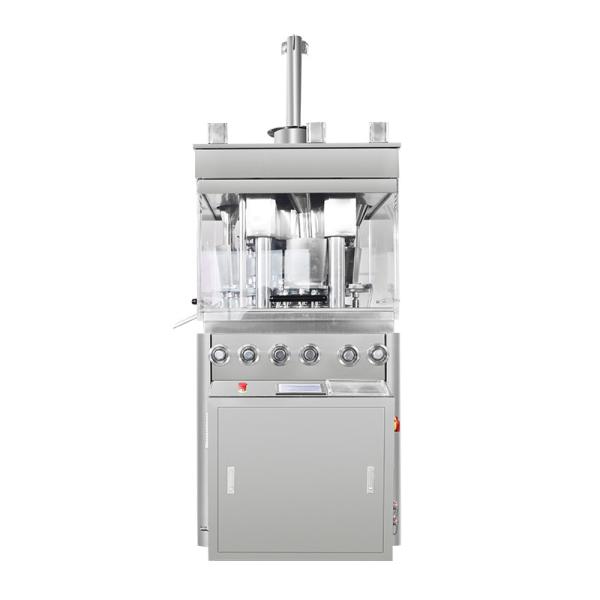

Pharmaceutical Tablet Press Machine Medicine Pill Making Machine

Name: Pharmaceutical Tablet Press Machine Medicine Pill Making Machine
Brand: SED-pharma
Price: 28 USD

Pharmaceutical Tablet Press Machine Medicine Pill Making Machine Manufactures

Brand Name : SED-pharma

Model Number : SED-25Y

Certification : CE

Place of Origin : Zhejiang, China

MOQ : >=1 Pieces

Price : $28,000.00 / Piece

Payment Terms : T/T,L/C, MoneyGram,Cash

Supply Ability : 30 Piece/Pieces per Month

Delivery Time : Est. Time(days)-15-To be negotiated

Packaging Details : Export standard packing

Name : Pharmaceutical Tablet Press Machine Medicine Pill Making Machine

Capacity (pcs/h) : 60000pcs/h

Station (Set) : 25

Rotation Speed(rpm） : 60rpm

Max. Pressure(KN) : 100kN

Voltage : 220V/380V

material : stainless steel

key word : Tablet Press Machine

Contact Now

Pharmaceutical Tablet Press Machine Medicine Pill Making Machine

Product Description of Rotary Tablet Press Machine

Automatic rotary tablet press is a kind of equipment which can continuously press powder and granule into round, special-shaped and annular tablets.

It is the first choice for pharmaceutical, chemical, electronic, food and other enterprises for mass production, which meets the requirements of GMP production.

Product Parameters of Rotary Tablet Press Machine

ITEM	spec
Type	SED-445-23Y-D
Station	23 stations
Power	7.5 kw
Voltage	380v 50HZ (according to the request of the customer)
Max pressure	100KN
Max diameter of tablets	40mm
Max filling depth	33mm
Max thickness of tablet	16mm
Table valid diameter	445mm
Speed	6-- 15 RPM
Max capacity	20700 tablet
Working table diameter	445mm
Outer diameter of the punch	45mm
Height of middle die	38mm
Diameter of upper and lower punch	45mm
Length of upper punch	175mm
Length of lower punch	180mm
Dimension	1000x1250x1900mm
Weight of machine	3200kg

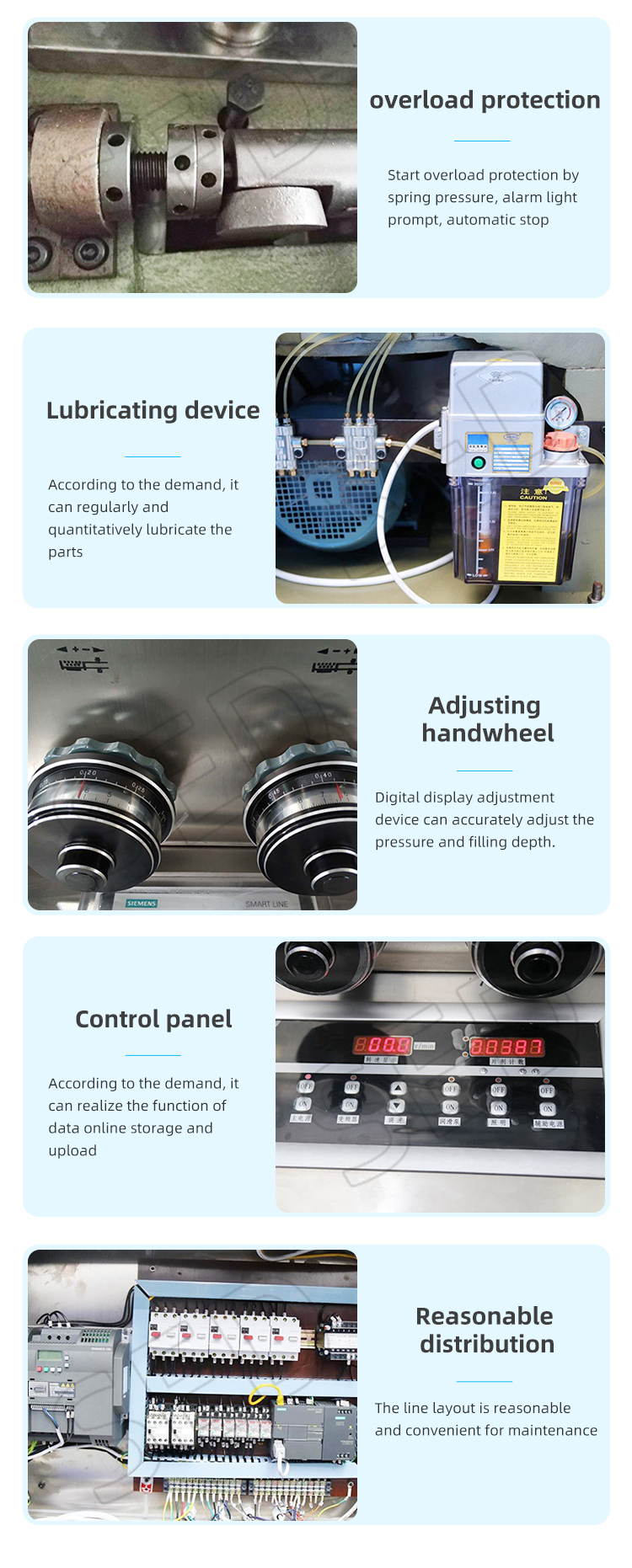

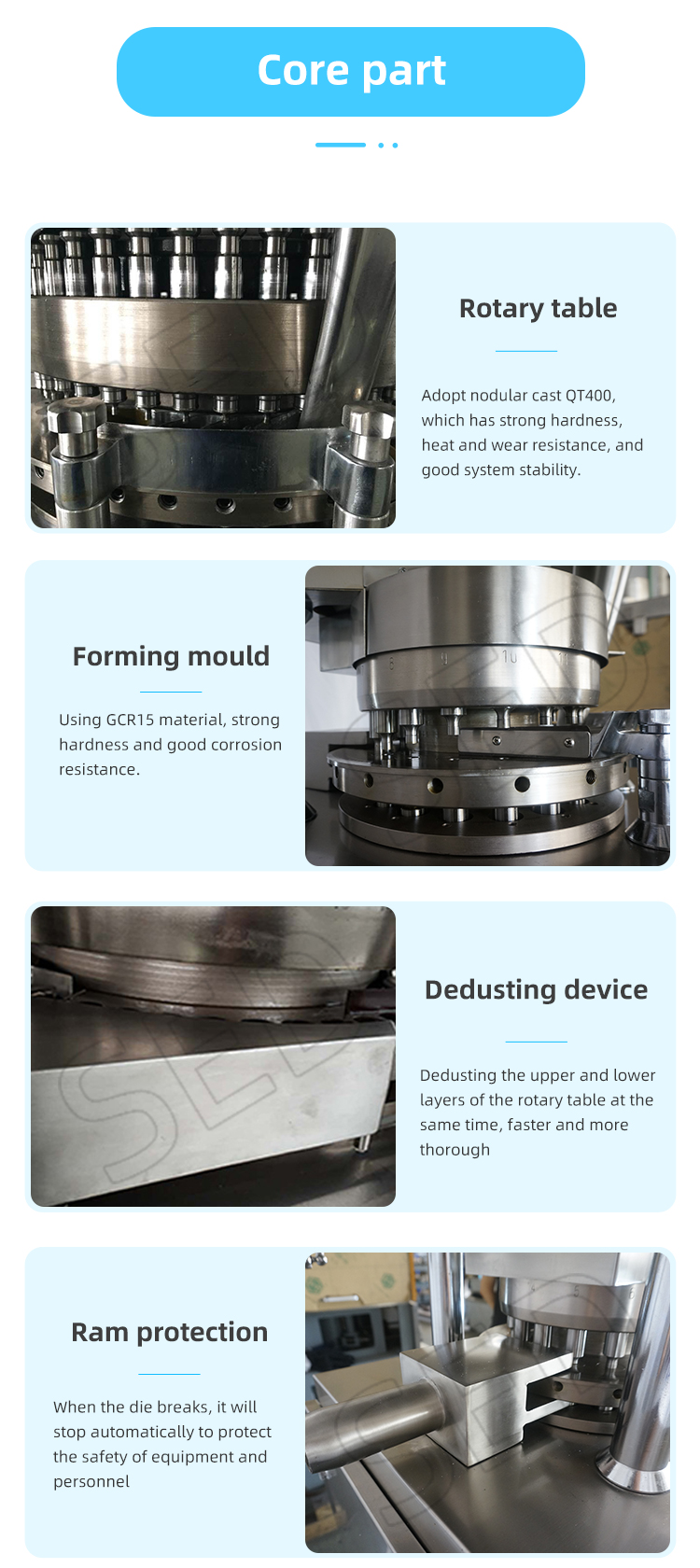

Show of Rotary Tablet Press Machine

Pharmaceutical Tablet Press Machine Medicine Pill Making Machine

Application of Rotary Tablet Press Machine

Pharmaceutical Tablet Press Machine Medicine Pill Making Machine
