Pharmaceutical Empty Gelatin Capsule Filling Machine
Products Description of Capsule Filling Machine
SED-200J-C adopt touch screen and PLC control system. The machine will make alarm and display in the touch screen when running malfunction or material lacking. It has function such as auto alarm dismissing, password setup, automatic parameter setup, data printing, reset, etc.
The cam and other main parts all adopt imported materials. And the machine is suitable for Powder, Granules and Pellet filling, special for Capsule size from 00# to 4#.
Detailed Parameters of Capsule Filling Machine
| Model | SED-200J-C |
| Productivity | 200 Capsules/min |
| Size of capsule | Capsule size 00#～4# Safe capsule A～E |
| Total power | 3.32kw |
| Power supply | Three-phase four-wire AC 380V 50Hz |
| Capsule sowing accuracy | ≥99.5％ |
| Overall dimensions | 720*680*1700mm |
| Weight | 700kg |
Feature of Capsule Filling Machine
1. The automatic hard capsule filling equipment with intermittent action and hole-disc filling is fully enclosed at the filling and turning parts, which is convenient for cleaning;
2. The upper and lower modules of the capsule filling machine move in one direction, and the imported double-lip polyurethane seals
3.The module cleaning station of the capsule filling machine is combined with air blowing and suction, and there is no dust in the high-speed operation of the die hole;
4. The locking station of the capsule filling machine is equipped with a powder suction device;
5. Capsule The bag filling station of the filling machine is equipped with a bag ring, and there is no dust flying.

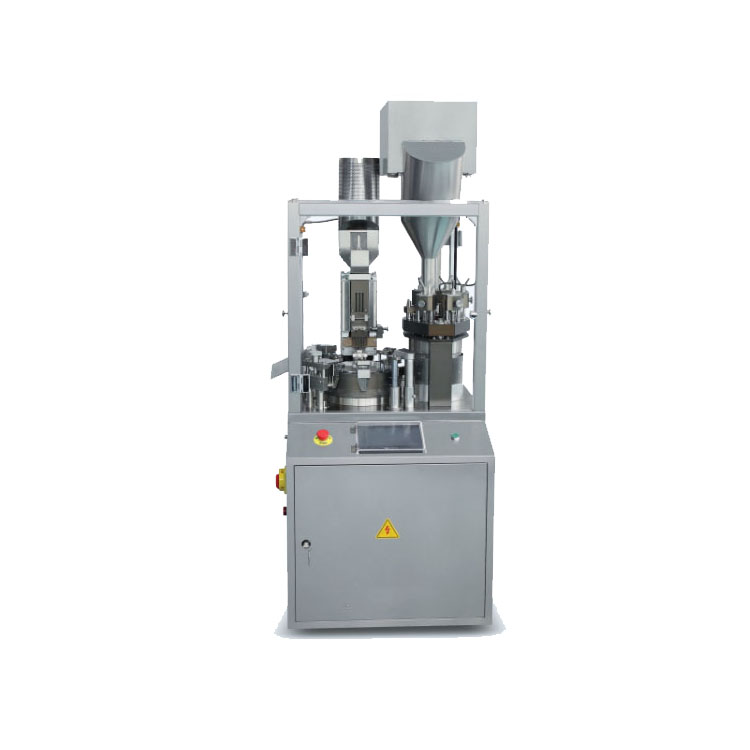

Products Show of Capsule Filling Machine
How To Operate of Capsule Filling Machine
1. Press the green button in the power switch of the capsule filling machine, and the power is turned on;
2. Slowly adjust the vibration intensity adjustment knob clockwise. At this time, the sorting tray integrated with the vibration bracket begins to vibrate and adjust to a suitable vibration
3. Put the capsule shell into the capsule shell sorting tray, and put the capsule cap into the capsule cap sorting tray, and the number is equal. Generally speaking, the sorting tray is drilled with many round holes in the shape of a large upper and a lower
small funnel. The diameter of the round hole corresponds to the diameter of the capsule, and the capsule shell on the vibration table moves slowly back and forth, so that the capsule shell enters the hole on the platen;
4. The capsule shell and the cap of the capsule fall into the round hole with the opening facing upwards. When the opening is facing downwards, the capsule cap can be gently pressed downward, and then the capsule can be pulled out;
5. Hold the capsule shell connecting plate horizontally, and push it gently in the lower part of the sorting tray, and the powder capsule shell in the sorting tray will be removed. It will drop down into the round hole of the connecting plate, and then take out the connecting plate. In the same way, take out the capsule cap with the capsule cap cover plate of the capsule filling machine.
Application of Capsule Filling Machine
